Adding Search Metadata to Publishing Site Pages in SharePoint 2010


You have a SharePoint publishing site with a number of pages that display dynamic content based on a query string. You followed a process similar to Crawling Publishing Sites in SharePoint 2010 to configure SharePoint search to index the dynamic page content. Now you’d like to enrich the items in the search index with additional metadata that can be used for property restriction queries or for adding custom refiners.


Add dynamically generated META tag to the page. SharePoint will automatically create a crawled property of type Text under in the Web category using the name attribute of the META tag as the crawled property name. You can then map the crawled property to a new managed property that will get its value populated with the content attribute value of the META tag.


I’ll use the web part and pages created in my previous blog post and will simply extend the web part to generate a META tag.

public class ProductInformation : WebPart
    protected override void CreateChildControls()
        // get the model number from query string
        string modelNumber = Page.Request.QueryString["ModelNumber"];
        if (!string.IsNullOrEmpty(modelNumber))
            // assign a product category based on the model number
            string productCategory = string.Empty;
            switch (modelNumber)
                case "M300":
                case "M400":
                case "M500":
                case "X200":
                case "X250":
                    productCategory = "Digital Camera";
                case "X300":
                case "X358":
                case "X400":
                case "X458":
                case "X500":
                    productCategory = "Digital SLR";

            // set the page title
            ContentPlaceHolder contentPlaceHolder = (ContentPlaceHolder)Page.Master.FindControl("PlaceHolderPageTitle");
            contentPlaceHolder.Controls.Add(new LiteralControl() { Text = string.Format("{0} {1}", modelNumber, productCategory) });

            // add the model number and product category to the page as an H2 heading
            Controls.Add(new LiteralControl() { Text = string.Format("<h2>{0} {1}</h2>", modelNumber, productCategory) });

            // generate a META tag
            Page.Header.Controls.Add(new HtmlMeta() { Name = "modelnumber", Content = modelNumber });

If we refresh one of the product information pages after deploying the code change above, we should be able to see the META tag in the page source.

<meta name="modelnumber" content="M300" />

Now run a full crawl and then verify that the crawled property was created by going to Central Administration > Search Service Application > Metadata Properties > Crawled Properties (for SharePoint Search) or to Central Administration > Query SSA > FAST Search Administration > Crawled property categories > Web (for FAST Search).

Next, create a new managed property of type Text and add a mapping to the crawled property above. If using FAST Search, also check the Query property and Refiner property checkboxes.

Run another full crawl and the managed property is now ready to be used for property restriction queries or as a refiner.

Let’s test it by running the following query first:

You can now also use the new managed property as a refiner.

Crawler Impact Rules in SharePoint 2010

In SharePoint 2010, you can control the content crawl rate at the search service application level by using Crawler Impact Rules. By default, the number of simultaneous requests changes dynamically based on the server hardware and utilization. Crawler impact rules are often used to throttle the request rate for external websites. You can manage crawler impact rules in Central Administration > Search Service Application > Crawler Impact Rules.

Let’s watch the Filtering Threads and Idle Threads from the OSS Search Gatherer category in Performance Monitor during a content crawl before any crawler impact rules are defined.

In my development VM, I see that the number of filtering threads stays at around 20 and the number of idle threads around 12 for the duration of the crawl which means that an average of 8 threads are being used by the gatherer process.

Next, let’s create a new crawler impact rule to limit the number of simultaneous requests to 2 using the * site name wildcard to apply the rule to all sites.

If we keep an eye on the performance counters this time, we can see that now the difference between the number of filtering and idle threads during a crawl equals to 2 (11 filtering threads and 9 idle threads in the example below).

The performance counters confirmed that our new crawler impact rule is working. Be careful when you delete a crawler impact rule though! I’ve seen it a number of times in different SharePoint farms that SharePoint remembers and keeps using the last deleted crawler impact rule. I verified it by monitoring the performance counters – the deleted crawler impact rule remains in effect until the the SharePoint Server Search 14 service is restarted (or a new rule is added that overrides the deleted rule settings). So remember – restart the SharePoint Server Search 14 windows service after deleting a crawler impact rule!

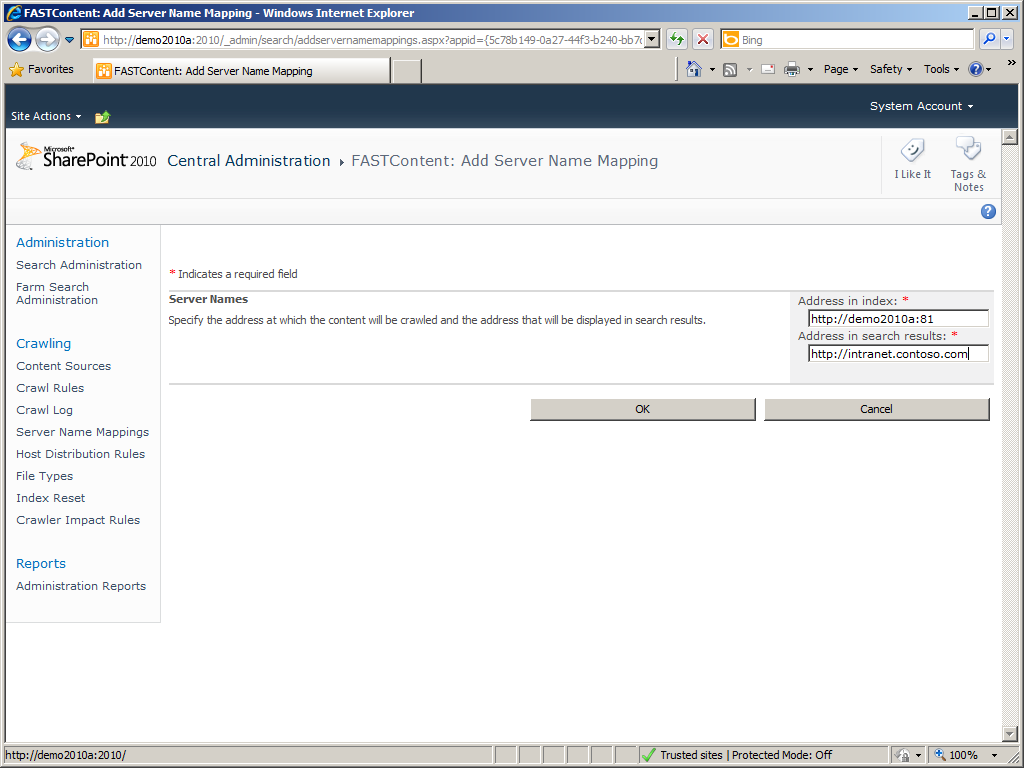

Export Search Service Application Crawler Settings to PowerShell in SharePoint 2010

If you ever wanted to take a snapshot of your search service application crawler settings in SharePoint 2010 then you already know that there’s no easy way of doing it without writing custom code. Even if you initially deployed crawler settings to your SharePoint farm using PowerShell scripts, chances are that some settings have been updated manually and the current configuration no longer matches the original deployment scripts. The following PowerShell script exports the main properties of Content Sources, Crawl Rules and Server Name Mappings that exist within a search service application. It’s not complete by any means but can serve as a starting point to be customized and extended to match your specific requirements. One thing to highlight is that the script doesn’t simply export the current search crawler settings to a data file but it actually translates your configuration into PowerShell commands that can later be executed to restore crawler settings to the current state.

$ssaName = "FASTContent"
$searchApp = Get-SPEnterpriseSearchServiceApplication $ssaName

$filePath = "ContentSourcesExport.ps1"
"`$searchApp = Get-SPEnterpriseSearchServiceApplication `"$ssaName`"" | Out-File $filePath
Get-SPEnterpriseSearchCrawlContentSource -SearchApplication $searchApp | Foreach-Object {"New-SPEnterpriseSearchCrawlContentSource -SearchApplication `$searchApp -Name `"" + $_.Name + "`" -Type " + $_.Type + " -StartAddresses `"" + [System.String]::Join(",",$_.StartAddresses) + "`""} | Out-File $filePath -Append

$filePath = "CrawlRulesExport.ps1"
"`$searchApp = Get-SPEnterpriseSearchServiceApplication `"$ssaName`"" | Out-File $filePath
Get-SPEnterpriseSearchCrawlRule -SearchApplication $searchApp | Foreach-Object {"New-SPEnterpriseSearchCrawlRule -SearchApplication `$searchApp –Path `"" + $_.Path + "`" –CrawlAsHttp `$" + $_.CrawlAsHttp + " -Type " + $_.Type + " -FollowComplexUrls `$" + $_.FollowComplexUrls} | Out-File $filePath -Append

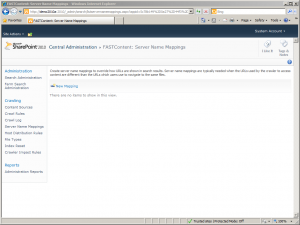

$filePath = "ServerNameMappingsExport.ps1"
"`$searchApp = Get-SPEnterpriseSearchServiceApplication `"$ssaName`"" | Out-File $filePath
Get-SPEnterpriseSearchCrawlMapping -SearchApplication $searchApp | Foreach-Object {"New-SPEnterpriseSearchCrawlMapping -SearchApplication `$searchApp -Url `"" + $_.Source + "`" -Target `"" + $_.Target + "`""} | Out-File $filePath -Append

The script below can be used to easily delete all of Content Sources, Crawl Rules and Server Name Mappings that exist within a given search service application.

$ssaName = "FASTContent"
$searchApp = Get-SPEnterpriseSearchServiceApplication $ssaName

Get-SPEnterpriseSearchCrawlContentSource -SearchApplication $searchApp | Remove-SPEnterpriseSearchCrawlContentSource

Get-SPEnterpriseSearchCrawlRule -SearchApplication $searchApp | Remove-SPEnterpriseSearchCrawlRule

Get-SPEnterpriseSearchCrawlMapping -SearchApplication $searchApp | Remove-SPEnterpriseSearchCrawlMapping

Enable Query Suggestions in SharePoint 2010

The concept of query suggestions is already well described in the Manage query suggestions TechNet article. One thing you might have noticed is that query suggestions are only enabled by default in the Search Center site templates (available for both SharePoint Search and FAST Search) but are not enabled for the search box located in the page header of other standard SharePoint site templates. In this blog post I’m going to show how to override the default behavior and enable search query suggestions for sites created using the Team Site template without modifying the out-of-the-box master page.

First, let’s go ahead and create some query suggestions using the following PowerShell command:

$searchapp = Get-SPEnterpriseSearchServiceApplication -Identity "FASTQuery"

New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "M300 Digital Camera"
New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "M400 Digital Camera"
New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "M500 Digital Camera"
New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "X200 Digital Camera"
New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "X250 Digital Camera"
New-SPEnterpriseSearchLanguageResourcePhrase -SearchApplication $searchapp -Language En-Us -Type QuerySuggestionAlwaysSuggest -Name "Z500 Digital Camera"

Start-SPTimerJob -Identity "Prepare query suggestions"

Once the timer jobs completes, we should see query suggestions in the search center:

But what about the standard site pages? Well, the query suggestions are disabled there by default. Next, we are going to build a new site collection feature that turns the query suggestions on for the entire site collection.

Let’s go ahead and create a new empty SharePoint 2010 project in Visual Studio 2010 and add a new site collection feature.

Now we need to add a new Empty Element item to the project and populate the Elements.xml file with the following content:

<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="">
		ControlAssembly="Microsoft.Office.Server.Search, Version=, Culture=neutral, PublicKeyToken=71e9bce111e9429c">
		<Property Name="GoImageUrl">/_layouts/images/gosearch15.png</Property>
		<Property Name="GoImageUrlRTL">/_layouts/images/gosearchrtl15.png</Property>
		<Property Name="GoImageActiveUrl">/_layouts/images/gosearchhover15.png</Property>
		<Property Name="GoImageActiveUrlRTL">/_layouts/images/gosearchrtlhover15.png</Property>
		<Property Name="UseSiteDefaults">true</Property>
		<Property Name="FrameType">None</Property>
		<Property Name="ShowAdvancedSearch">false</Property>
		<Property Name="DropDownModeEx">HideScopeDD_DefaultContextual</Property>
		<Property Name="UseSiteDropDownMode">true</Property>
		<Property Name="ShowQuerySuggestions">True</Property>

Your project structure at this point should be similar to the screenshot below:

Build and deploy the solution package and activate the site collection feature. Start typing the search query and you should see the query suggestions now but it’s obvious that the out-of-the-box SharePoint styles don’t work properly in this case:

In order to resolve this style issue we have to override a couple of the SharePoint styles. Start by right-clicking the project in Solution Explorer, then going to Add -> SharePoint “Layouts” Mapped Folder. Then add a new css file with the following content:

.s4-search INPUT {
	FLOAT: none !important
.s4-rp DIV {
	DISPLAY: block !important

The last step is to add the new css file reference to the SharePoint master page. We’ll do it by updating the existing Elements.xml to add a custom CssRegistration to AdditionalPageHead. Here’s the final Elements.xml file content and project structure:

Deploy the solution package once again and check out the query suggestions styling now – everything should look and work as expected now:


  1. Manage query suggestions (SharePoint Server 2010)

Show Search Results on Any Page in SharePoint 2010

SharePoint users and site owners often think of search results as a stand-alone page but it’s also a great way to aggregate content across different sites, site collections and even web applications that share the same search index without the limitations and performance issues associated with querying SharePoint lists and document libraries directly. In this blog post I’ll explain how to use the out-of-the-box Search Core Results web part to show search results on virtually any SharePoint 2010 page. We’ll use the Fixed Keyword Query property of the web part to define the search query to be executed automatically whenever a user visits the page.

First of all, we need to edit a page and add a Search Core Results web part to it:

Next, let’s edit the web part and set the Fixed Keyword Query property to the desired search query:

Then, set the Location web part property to the configure where the search results will be coming from. In this case I use FAST Search:

And that’s it, just save your changes, refresh the page and you’ll see the expected search results right on the page:

The Search Core Results web part is very flexible and exposes many different properties that allow you to customize what information is displayed and how the search results will appear on the page so I highly recommend spending some time to familiarize yourself with the customization options available out-of-the-box and require no custom web part development efforts.

Adding a Custom Property Search Refiner in SharePoint 2010

In the previous blog post Extending FAST Search Processing Pipeline we created a new custom managed property called Project and extended the FAST Search processing pipeline to populate the property with values. In this article we’ll give users the ability to refine results based on the new property values by adding a new refiner to the search results page in the search center.

First we’ll navigate to the results.aspx page by submitting a search query.

Next we need to Edit the page and bring up the Refinement Panel properties.

The properties we are interested in are the Filter Category Definition and Use Default Configuration. Go ahead and copy the Filter Category Definition property content into your favorite text editor. Insert the following element into the original xml content. Note that the managed property name set in the MappedProperty attribute must be in all lower case letters.

<Category Title="Project" Description="Project number" Type="Microsoft.Office.Server.Search.WebControls.ManagedPropertyFilterGenerator" MetadataThreshold="1" NumberOfFiltersToDisplay="4" MaxNumberOfFilters="20" ShowMoreLink="True" MappedProperty="project" MoreLinkText="show more" LessLinkText="show fewer" ShowCounts="Count" />

Then make sure to uncheck the Use Default Configuration checkbox, hit Apply to submit the web part changes and Save the page. You should see similar results as in the screenshot below:

Now the users have the ability to easily refine search results by Project without having to go back and add any additional metadata to existing SharePoint content – the Project property values are generated dynamically based on the location of the document within SharePoint site hierarchy by the custom processing pipeline module implemented in the earlier blog post.

Extending FAST Search Processing Pipeline

One of the major benefits of using FAST Search for SharePoint Server 2010 (FS4SP) is the ability to extend the item processing pipeline and modify existing or populate new crawled properties of each document programmatically. This concept may sound complicated at first but in reality it’s not that hard at all. In this blog post I’m going to show how to integrate a C# console application into the processing pipeline and use custom logic to populate an additional crawled property for each item in the search index.

Let’s say we have a number of SharePoint project sites where each site contains information about a different digital camera model and we’d like to tag each document located within any of the project sites with the project name (camera model) in the search index without adding any extra metadata to SharePoint items.

To accomplish that we are going to populate a custom crawled property called Project by extracting the project name from site urls that match a specific pattern:

  • http://intranet/sites/sp2010pillars/Projects/M300/
  • http://intranet/sites/sp2010pillars/Projects/M400/
  • http://intranet/sites/sp2010pillars/Projects/M500/
  • http://intranet/sites/sp2010pillars/Projects/X200/
  • http://intranet/sites/sp2010pillars/Projects/X250/

First of all we need to create a new crawled property to be populated. It is a good practice to create a new crawled property category so that the custom crawled properties don’t get mixed up with SharePoint or any other properties in the search index schema. Since crawled property categories are uniquely identified with a GUID, we need to generate a new GUID. One option is to use Visual Studio 2010 for that – Tools -> Create GUID:

Next we’ll use PowerShell to create the new category called Custom and add the new Project crawled property to it. In the next blog post I’m planning to show how to add a new refiner to the FAST Search Center based on the values we populate the Project crawled property with so let’s go ahead and create and map it to a new managed property.

Add-PSSnapin Microsoft.FASTSearch.Powershell -ErrorAction SilentlyContinue

$guid = "{21FDF551-3231-49C3-A04C-A258052C4B68}"
New-FASTSearchMetadataCategory -Name Custom -Propset $guid

$crawledproperty = New-FASTSearchMetadataCrawledProperty -Name Project -Propset $guid -Varianttype 31
$managedproperty = New-FASTSearchMetadataManagedProperty -Name Project -type 1 -description "Project name extracted from the SharePoint site url"

Set-FASTSearchMetadataManagedProperty -ManagedProperty $managedproperty -Refinement 1
New-FASTSearchMetadataCrawledPropertyMapping -ManagedProperty $managedproperty -CrawledProperty $crawledproperty

Now we are ready to create the console application that contains our custom logic.

The following code is going to be used to read the url input crawled property value, check if it matches our project site url pattern and extract the project name from the url if it’s a match.

using System;
using System.Linq;
using System.Xml.Linq;
using System.Text.RegularExpressions;

namespace Contoso.ProjectNameExtractor
    class Program
        // special property set GUID that contains the url crawled property
        public static readonly Guid PROPERTYSET_SPECIAL = new Guid("11280615-f653-448f-8ed8-2915008789f2");

        // Custom crawled property category GUID that contains the Region crawled property
        public static readonly Guid PROPERTYSET_CUSTOM = new Guid("21FDF551-3231-49C3-A04C-A258052C4B68");

        // crawled property name to be populated
        public const string PROPERTYNAME_REGION = "Project";

        static void Main(string[] args)
            XDocument inputDoc = XDocument.Load(args[0]);

            // retrieve the url input property value
            string url = (from cp in inputDoc.Descendants("CrawledProperty")
                          where new Guid(cp.Attribute("propertySet").Value).Equals(PROPERTYSET_SPECIAL) &&
                          cp.Attribute("propertyName").Value == "url" &&
                          cp.Attribute("varType").Value == "31"
                          select cp.Value).First();

            XElement outputElement = new XElement("Document");

            // project site url regex
            Match urlMatch = Regex.Match(url, "(?<=*?[^/]+", RegexOptions.IgnoreCase);
            if (urlMatch.Success)
                // populate the custom Region crawled property
                    new XElement("CrawledProperty",
                        new XAttribute("propertySet", PROPERTYSET_CUSTOM),
                        new XAttribute("propertyName", PROPERTYNAME_REGION),
                        new XAttribute("varType", 31),


At this point we are ready to deploy the application to the FAST Search servers. In order to do that we need to copy the executable to each FAST server running document processors and modify the pipelineextensibility.xml file located in the FASTSearch\etc folder on each of those servers. Keep in mind that the pipelineextensibility.xml file can get overwritten if you install a FAST Search Server 2010 for SharePoint update or service pack. Below is the file content assuming that the executable is located in the FASTSearch\bin folder:

	<Run command="Contoso.ProjectNameExtractor.exe %(input)s %(output)s">
			<CrawledProperty propertySet="11280615-f653-448f-8ed8-2915008789f2" varType="31" propertyName="url"/>
			<CrawledProperty propertySet="21FDF551-3231-49C3-A04C-A258052C4B68" varType="31" propertyName="Project"/>

Once all of the above is in place, simply execute psctrl reset command in Microsoft FAST Search Server 2010 for SharePoint shell and submit a full crawl for the SharePoint content source. When the full crawl is complete let’s run a search query for “digital camera” and take a look at the Project property value in the results:

As you can see, the managed property is populated with the expected values. In the next post I’ll show how to use this new property as a custom refiner in the FAST Search Center.


  1. Integrating an External Item Processing Component
  2. CrawledProperty Element [Pipeline Extensibility Configuration Schema]

FAST Search User Contexts and Best Bets in SharePoint 2010

In the previous post FAST Search User Contexts and Site Promotions in SharePoint 2010 I covered the overall concept of FAST Search User Contexts in SharePoint 2010 and provided instructions necessary to configure user contexts with SharePoint user interface and PowerShell scripts. This short post expands the topic and shows how to create best bets and associate them with specific user contexts.

The scenario is going to be very simple – for the “team site” search query we will display the Sales Team Site best bet to users from the Sales department and Marketing Team Site best bet to users from the Marketing department.

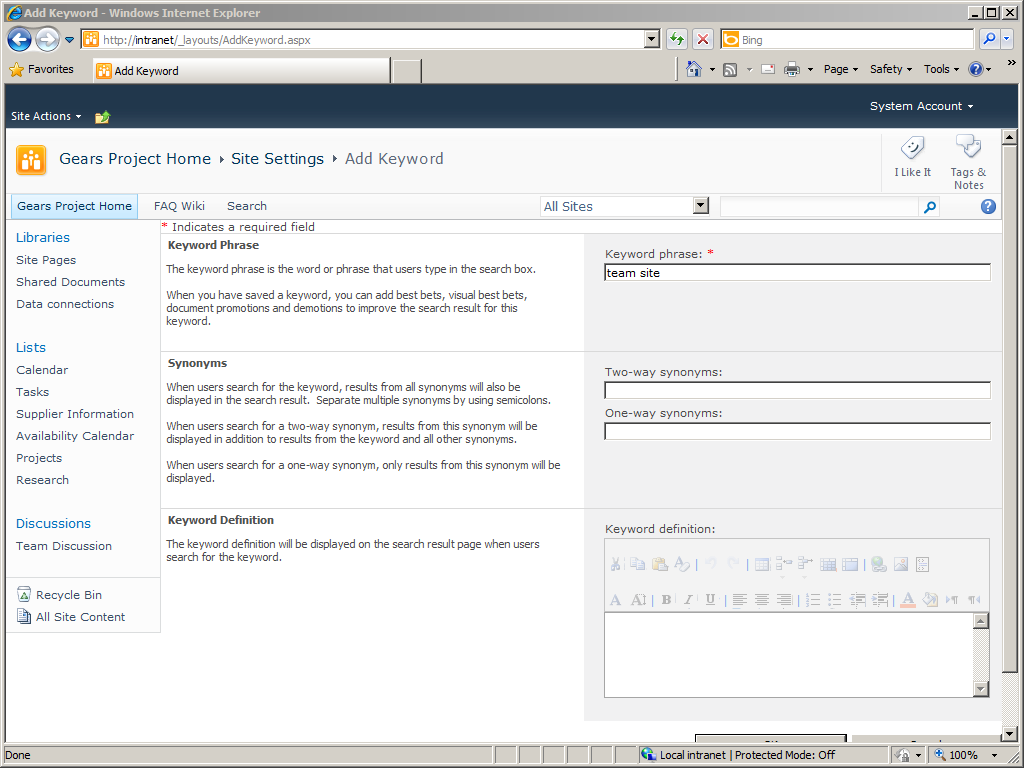

First of all, we need to create a FAST Search keyword for the “team site” phrase. You can do that by navigating to Site Settings -> Site Collection Administration -> FAST Search keywords -> Add Keyword:

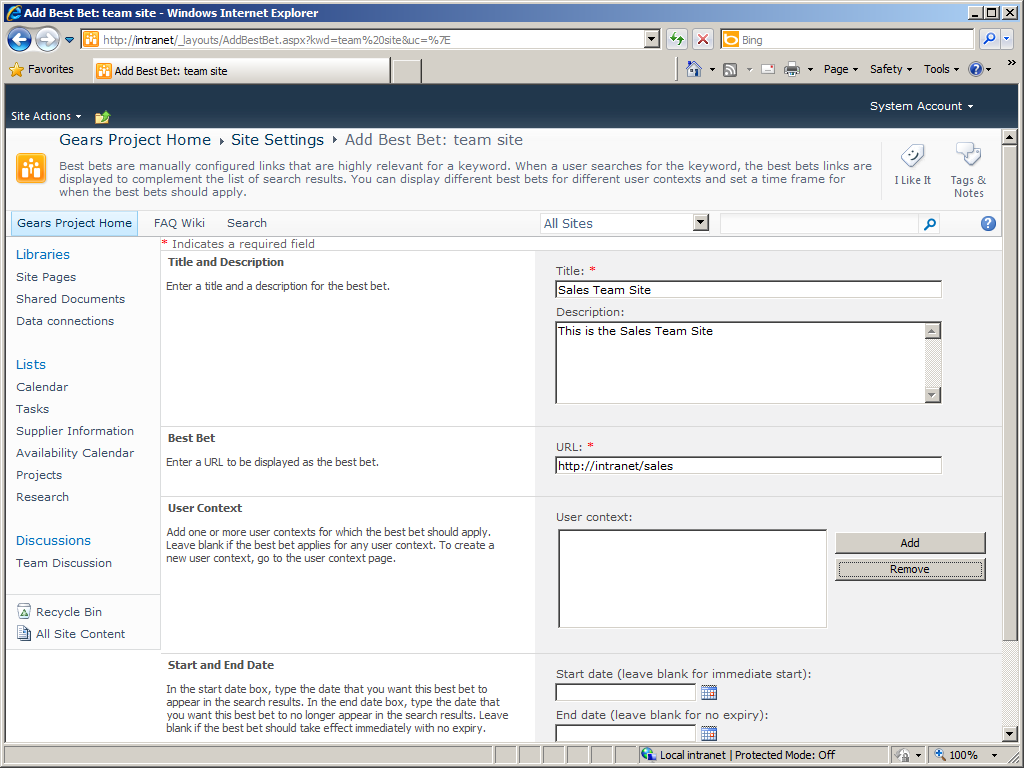

Next, click the newly added keyword and then Add Best Bet. Enter the Title, Description and the URL for the best bet:

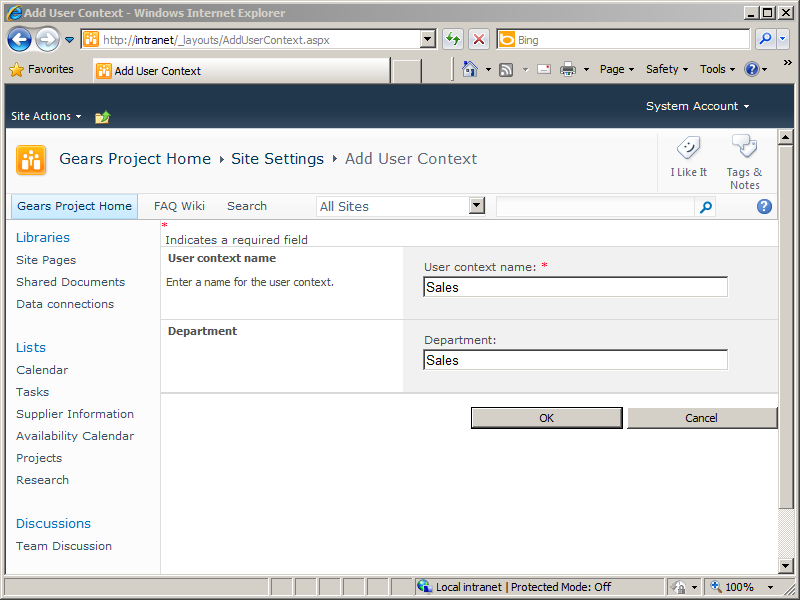

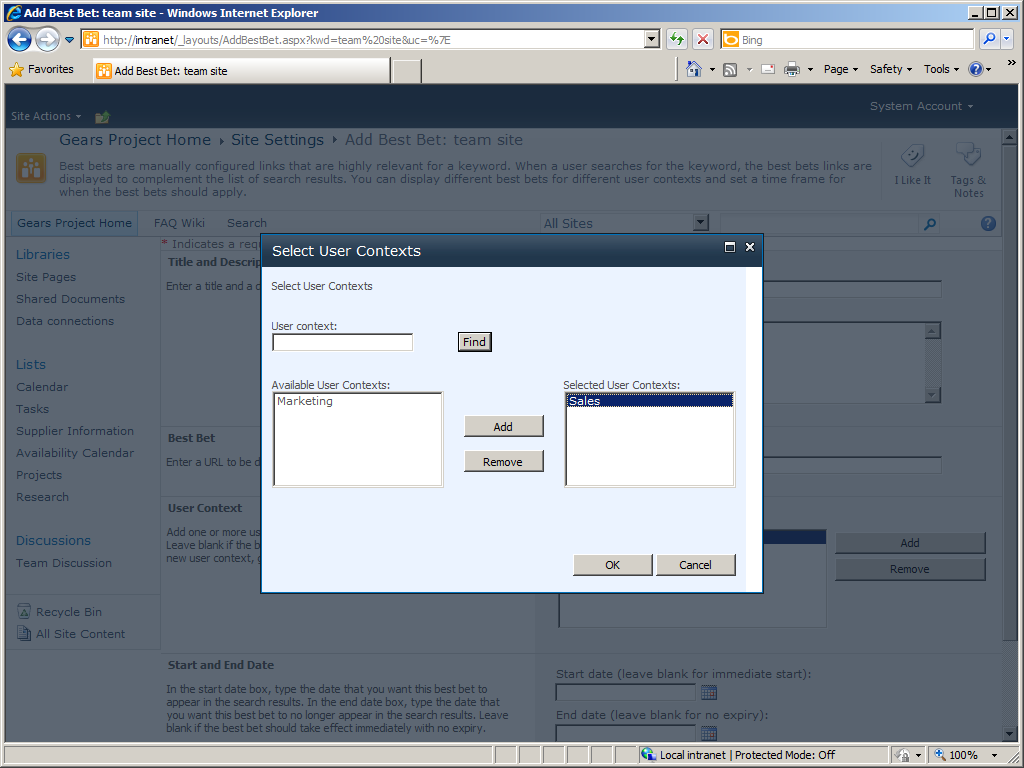

Press the Add button in the User Context and select the user context:

Repeat the steps above to add a best bet and associate it with the other user context. If we now login to the site as a user from the Sales department and execute the search for “team site” then that’s what we are going to get back. You can see that only the best bet for the Sales Team Site is displayed to the user:

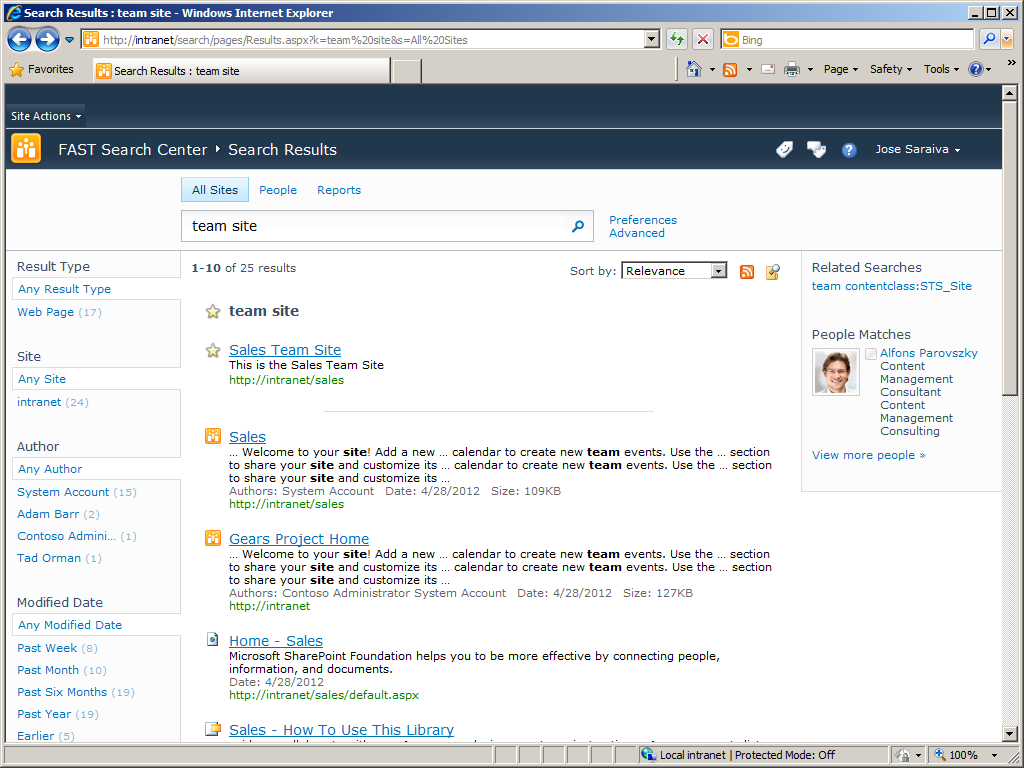

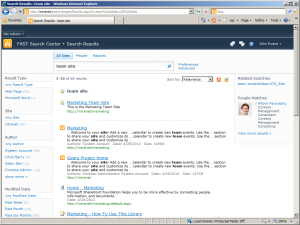

Similarly, only the Marketing Team Site best bet is displayed to the user from the Marketing department:

Here’s the PowerShell equivalent (the script assumes that you created the Sales and Marketing user contexts from the previous blog post and that the site collection ID matches your search center site host):

Add-PSSnapin Microsoft.FASTSearch.Powershell -ErrorAction SilentlyContinue

$siteCollectionId = "69d025ce-96a7-4131-adc0-7da1603e8d24"
$searchSettingGroup = Get-FASTSearchSearchSettingGroup -Name $siteCollectionId

$keyword = $searchSettingGroup.Keywords.AddKeyword("team site")

$uri = New-Object -TypeName System.Uri -ArgumentList "http://intranet/sales"
$bestBet = $keyword.AddBestBet("Sales Team Site", $uri)
$bestBet.Description = "This is the Sales Team Site"

$uri = New-Object -TypeName System.Uri -ArgumentList "http://intranet/marketing"
$bestBet = $keyword.AddBestBet("Marketing Team Site", $uri)
$bestBet.Description = "This is the Marketing Team Site"

FAST Search User Contexts and Site Promotions in SharePoint 2010

You may have heard about this cool feature of FAST Search for SharePoint Server 2010 (FS4SP) called user context. FAST Search user contexts allow you to use SharePoint user profile property values such as Office Location and Ask Me About (in the out-of-the-box configuration) or any other to boost search results.

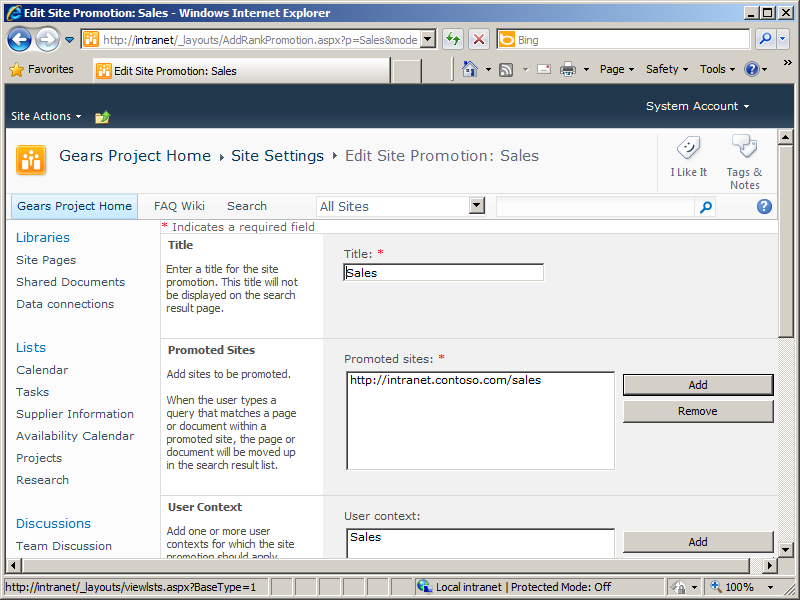

This article shows how easy it is to configure a SharePoint user profile property to be used with FAST Search user contexts, define user contexts based on specific property values and then associate those user contexts with sites and documents to be boosted in search results (feature called FAST Search Site Promotions). You have an option to use SharePoint user interface or PowerShell to perform most of the configuration steps so I’ll cover both. As an example, I’m going to use standard Department user profile property to boost search results for certain SharePoint sites for different users. Users from Sales and Marketing departments will have different search results boosted for the same search term.

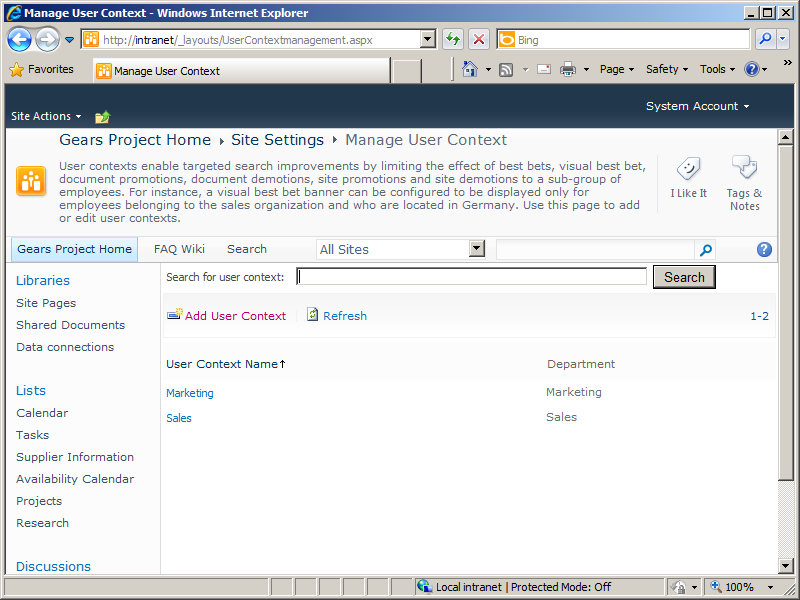

We’ll start by configuring the FAST user context to be based on the Department user profile property using the following PowerShell command :

Add-PSSnapIn Microsoft.SharePoint.PowerShell -ErrorAction SilentlyContinue
Set-SPEnterpriseSearchExtendedQueryProperty -SearchApplication "FASTQuery" -Identity "FASTSearchContextProperties" -Value "Department"

Next we need to perform an iisreset on the SharePoint WFE in order for the change to be reflected in the UI.

We can now add new user contexts by using different variations of the Department property values by going to Site Actions -> Site Collection Administration -> FAST Search user context -> Add User Context. Let’s go ahead and create a user context for Sales and Marketing.

If you have a large number of user contexts to be created and deployed to multiple environments then you may want to automate the process with PowerShell:

Add-PSSnapin Microsoft.FASTSearch.Powershell -ErrorAction SilentlyContinue

$siteCollectionId = "69d025ce-96a7-4131-adc0-7da1603e8d24"
$searchSettingGroup = Get-FASTSearchSearchSettingGroup -Name $siteCollectionId

$userContext = $searchSettingGroup.Contexts.AddContext("Sales")
$expression = $userContext.AddAndExpression()
$expression.AddMatchExpression("Department", "Sales")

$userContext = $searchSettingGroup.Contexts.AddContext("Marketing")
$expression = $userContext.AddAndExpression()
$expression.AddMatchExpression("Department", "Marketing")

Note that the commands above need to be executed on the FAST Search server and remember to use the site collection ID of the site collection that hosts your search center site. As you can see, the script approach is much more flexible than the SharePoint user interface in terms of the expressions you can use to define the context.

Once the user contexts are setup, you should see something similar on the Manage User Context page:

Next we are going to add a couple of site promotions and associate each one with a different user context. Navigate to Site Settings -> Site Collection Administration -> FAST Search site promotion and demotion -> Add Site Promotion, then add the Sales team site url to the Promoted Sites list and Sales user context to the User Context list:

Follow the same steps to create another site promotion but this time for the Marketing team site.

An alternate way of creating site promotions would be using the following PowerShell commands:

Add-PSSnapin Microsoft.FASTSearch.Powershell -ErrorAction SilentlyContinue

$siteCollectionId = "69d025ce-96a7-4131-adc0-7da1603e8d24"
$searchSettingGroup = Get-FASTSearchSearchSettingGroup -Name $siteCollectionId

$siteUri = New-Object -TypeName System.Uri -ArgumentList ""
$sitePromotion = $searchSettingGroup.PromotionsWithoutKeyword.AddPromotion("Sales")

$siteUri = New-Object -TypeName System.Uri -ArgumentList ""
$sitePromotion = $searchSettingGroup.PromotionsWithoutKeyword.AddPromotion("Marketing")

When creating site promotions using PowerShell, you also have the ability to specify a boost value other than the default value of 1000. Simply set the $sitePromotion.BoostValue property to the desired value.

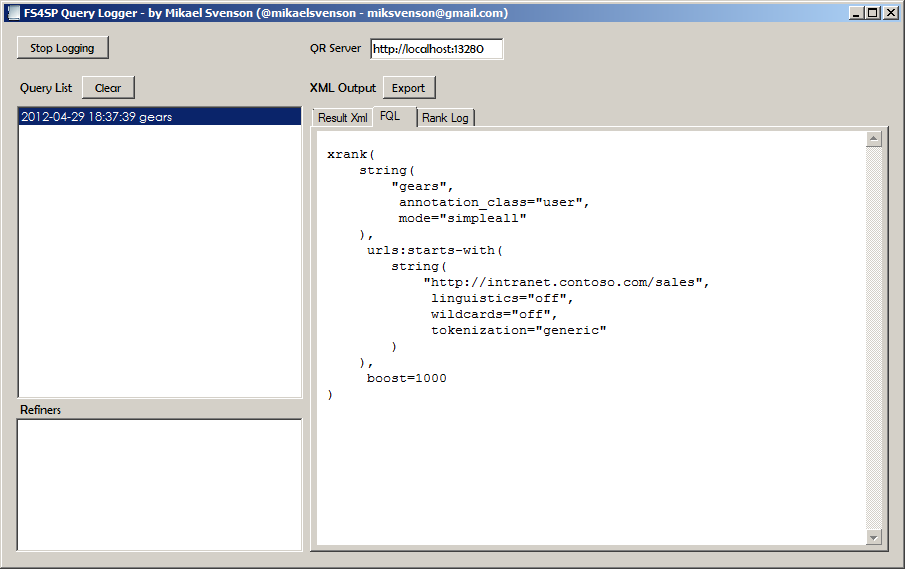

Finally, we are ready to verify if the search result boosting actually works. We are going to use the FAST Search for SharePoint 2010 Query Logger tool to take a look at the FQL commands being submitted and executed on the FAST query server. If we execute a search query in SharePoint using credentials of a user account having the Department user profile value set to Sales, we’ll see that an additional xrank expression has been added to the original query:

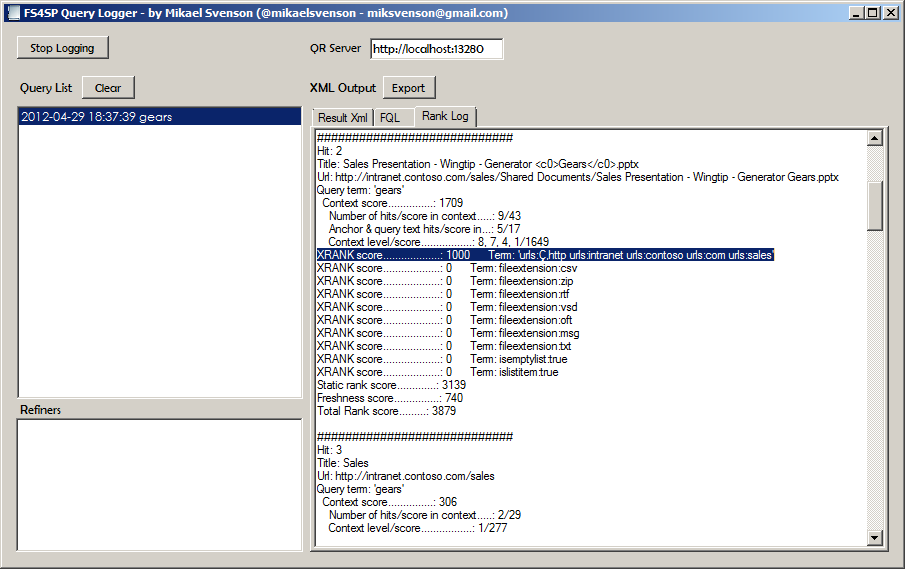

As you can see, the boost of 1000 points has been added to the final rank of the sales presentation document located on the Sales team site:

I hope you find it useful to see a specific example of creating FAST Search user contexts and site promotion in both SharePoint user interface and with PowerShell. In my next post, I’ll expand on the topic of user contexts and show an example of best bets targeting.

Search and Claims-Based Authentication in SharePoint 2010

In order to enable crawling for web applications configured with claims-based authentication in SharePoint 2010, it is required that Windows Authentication is enabled for at least one Zone. In cases when Forms Based Authentication or a Trusted Identity Provider is configured for the Default Zone, it is a common practice to extend the web application and enable Windows Authentication for the extended zone. Search is then setup to crawl the extended zone url. There’s a couple of issues with crawling a non-default zone though:

  1. Documents in the index are tagged with the extended zone urls so the search results in the Search Center point to that location rather than to the default zone
  2. Contextual search (This Site) doesn’t work as SharePoint appends the default zone url filter to the search query

Those may sound like major obstacles but it turns out there’s a simple solution, although it does require some manual configuration in Central Administration. The following steps apply to both SharePoint 2010 Search and FAST Search Server 2010 for SharePoint.

In Central Admin, navigate to Manage Service Applications -> Search Service Application (FAST Search Connector for FS4SP), then click on Server Name Mappings within the Crawling section.

Now add a new mapping for each non-default zone url being crawled. Enter the extended zone url in the “Address in index” field and the default zone url in the “Address in search results” field.

Once all server name mappings are in place, complete a full content crawl and that’s it! Your search results will show correct urls in the Search Center and contextual search will work properly.
